SNFD
COMPLIANT TO EN12845 STANDARD

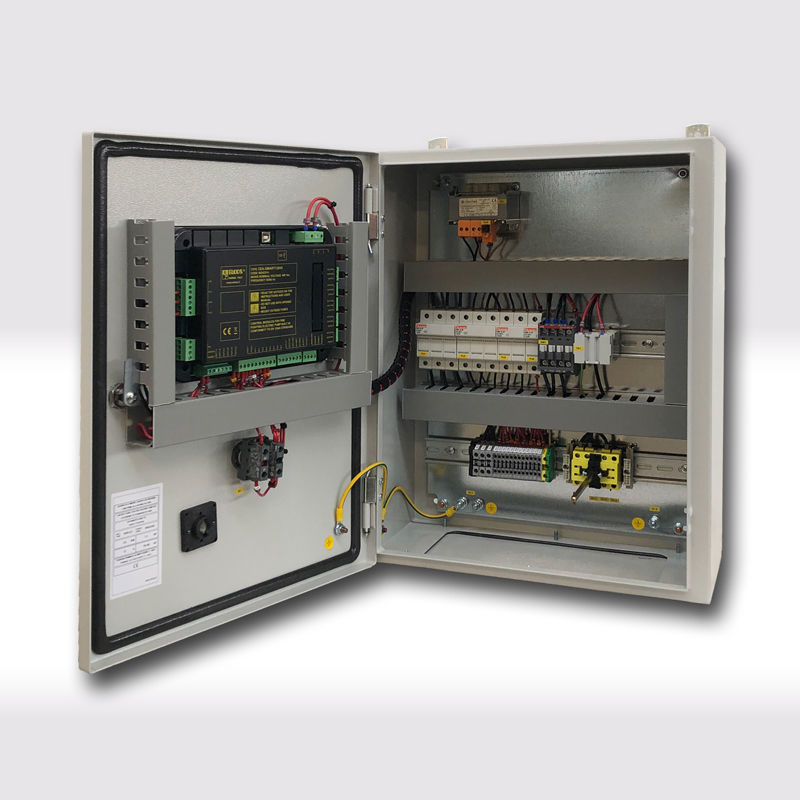

Automatic control panels for electric pump complying with standard EN12845 with direct starting, equipped with CEA-SMART025 control unit with digital instruments, signalling and warnings on LCD graphic display and with RS-485 serial connection for remote signalling.KEY FEATURES
| - Digital instruments (3 mains voltmeters, ammeter max 1000A, mains frequency meter, wattmeter, varmeter, voltammeter, cosphimeter, total hour meter, partial hour meter). |
| - Low voltage control circuit input. |
| - Electric pump contators AC3. |
| - Button for test of the warning lights. |
| - Starting stop buttons. |
| - Historical report. |
| - Direct automatic starting. |
IDENTIFICATION DATA
| Type | kW | In (A) | hP | Dimensions HxWxD (mm) | Code |
| SNFD-4 | 4 | 8 | 5,5 | 500 x 400 x 200 | 00023035 |
| SNFD-5,5 | 5,5 | 11 | 7,5 | 500 x 400 x 200 | 00023036 |
| SNFD-7,5 | 7,5 | 15 | 10 | 500 x 400 x 200 | 00023037 |
| SNFD-9,2 | 9,2 | 19 | 12,5 | 500 x 400 x 200 | 00023038 |
| SNFD-11 | 11 | 23 | 15 | 500 x 400 x 200 | 00023039 |
| SNFD-15 | 15 | 29 | 20 | 500 x 400 x 200 | 00023040 |
| SNFD-18,5 | 18,5 | 40 | 25 | 600 x 400 x 200 | 00023041 |
| SNFD-22 | 22 | 50 | 29 | 600 x 400 x 200 | 00023042 |
| SNFD-30 | 30 | 63 | 40 | 600 x 400 x 200 | 00023043 |
