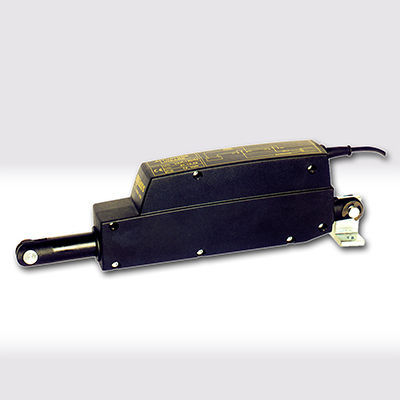

VAR-150/00 - VAR-201
LINEAR ACTUATORS
Linear actuators for diesel engine speed control.FUNCTIONS
| VAR-150/00 | |
| - | Remote control with two wires to be changed round for switching the movement |
| - | Stroke 70 mm |
| VAR-201 | |
| - | Remote control with six wires and on the actuator, with different possibilities depending on the connections |
| - | Variable distance max 60 mm |
TECHNICAL DATA
| - | Battery supply voltage 12Vdc or 24 Vdc |
| - | Max force 30 kg (300 N) |
| - | Speed at nominal voltage 15 mm/s ± 1 mm/s |
| - | Degree of protection VAR-150/00 IP51 |
| - | Degree of protection VAR-201 IP32 |
| Type | Code |
| VAR-150/00 12V | 00571545 |
| VAR-150/00 24V | 00571546 |
| VAR-201 12V | 00571547 |
| VAR-201 24V | 00571548 |
