NF-1300

AUTOMATIC CONTROL SWITCH-BOARD FOR DIESEL ENGINE

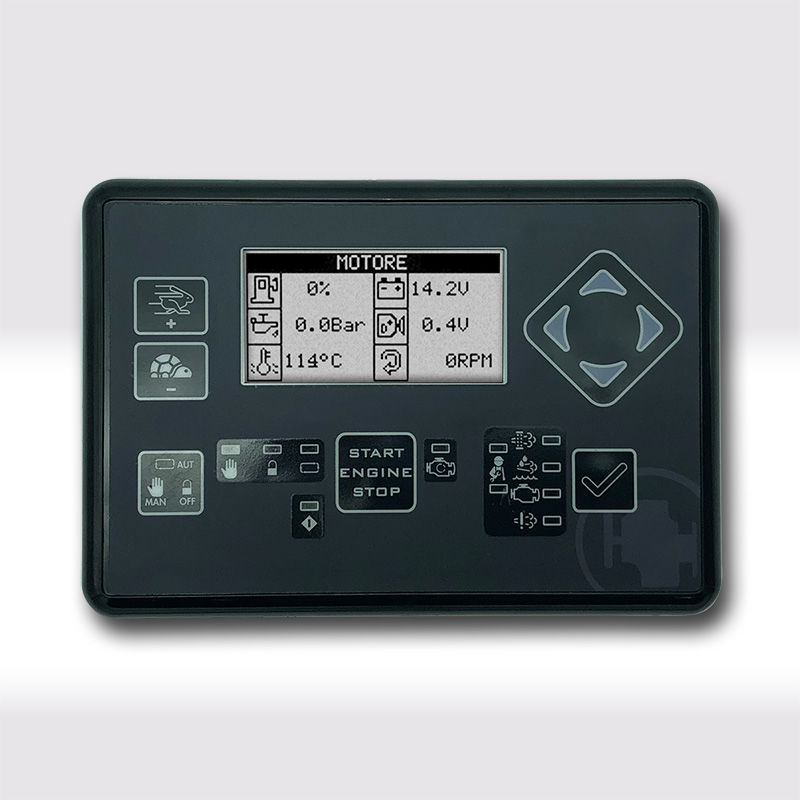

The panel is equipped with the DCA-339 control unit which allows you to start and stop a diesel or gasoline engine using the buttons on the front or from a remote control. It can also manage a linear actuator with which vary the engine revolutions.
It monitors the engine during its operation and, in the event of a fault, stops it.
It is already set up to be connected also with engines equipped with ECU engine control unit, via CAN Bus serial line, with SAE J1939 protocol.
Its graphic display, 128 x 64 dot backlit, allows easy management of the functions, shows pop-ups that clearly indicate the status of the diesel and by displaying texts and icons it indicates anomalies, pre-alarms or other engine signals.
The panel is internally equipped with the CBS-010 automatic battery charger, to keep the engine starter battery efficient.

KEY FEATURES

Its DCA-339 control unit displays the following instruments:

  • Fuel level in the tank [%]..
  • Engine tachometer [RPM].
  • Motor temperature expressed in [°C] or in [°F].
  • Engine oil pressure expressed in [bar] or in [kPa] or in [psi].
  • Battery voltage [V].
  • Voltage of D+ (pre-excitation alternator) [V].
  • Total hour counter [hh: mm].
  • Partial hour counter [hh: mm].
  • Start-up counter [n].
  • Expiration of maintenance.
  • Calendar clock.
The alarms are always shown on the display, in addition the STOP ANOMALY LED lights up if the engine is stopped, while the SIGNAL ANOMALY LED lights up if the anomaly is just a pre-alarm.

IDENTIFICATION DATA

Type Code
NF-1300 12V 00022148
NF-1300 24V 00022149

DOWNLOAD

Documents
Instruction and user manual DCA-339
Software
Firmware update software ZW-Upgrade
Only authorized users
Programming software ZW-SMART rel. 1.2.9010.27694
