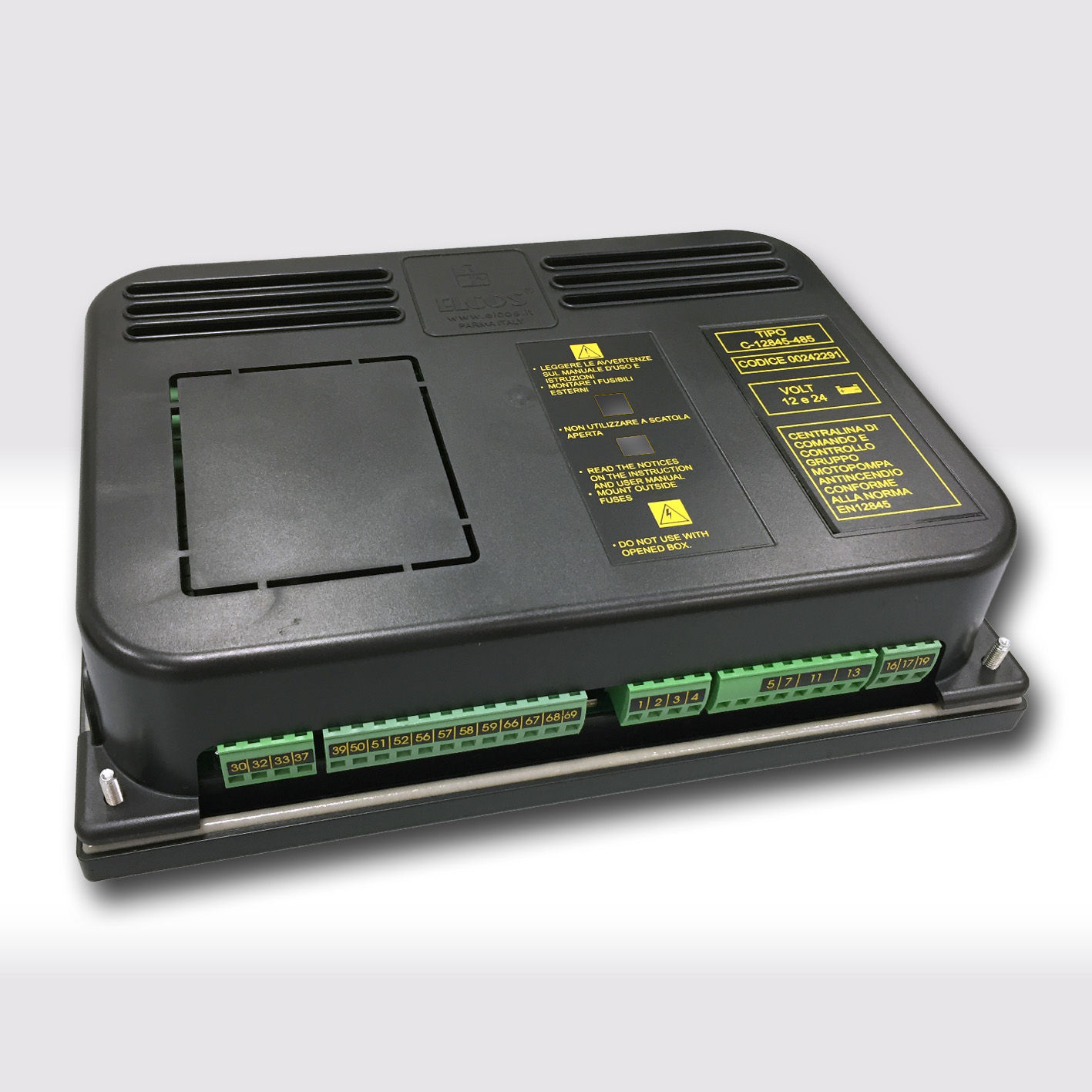

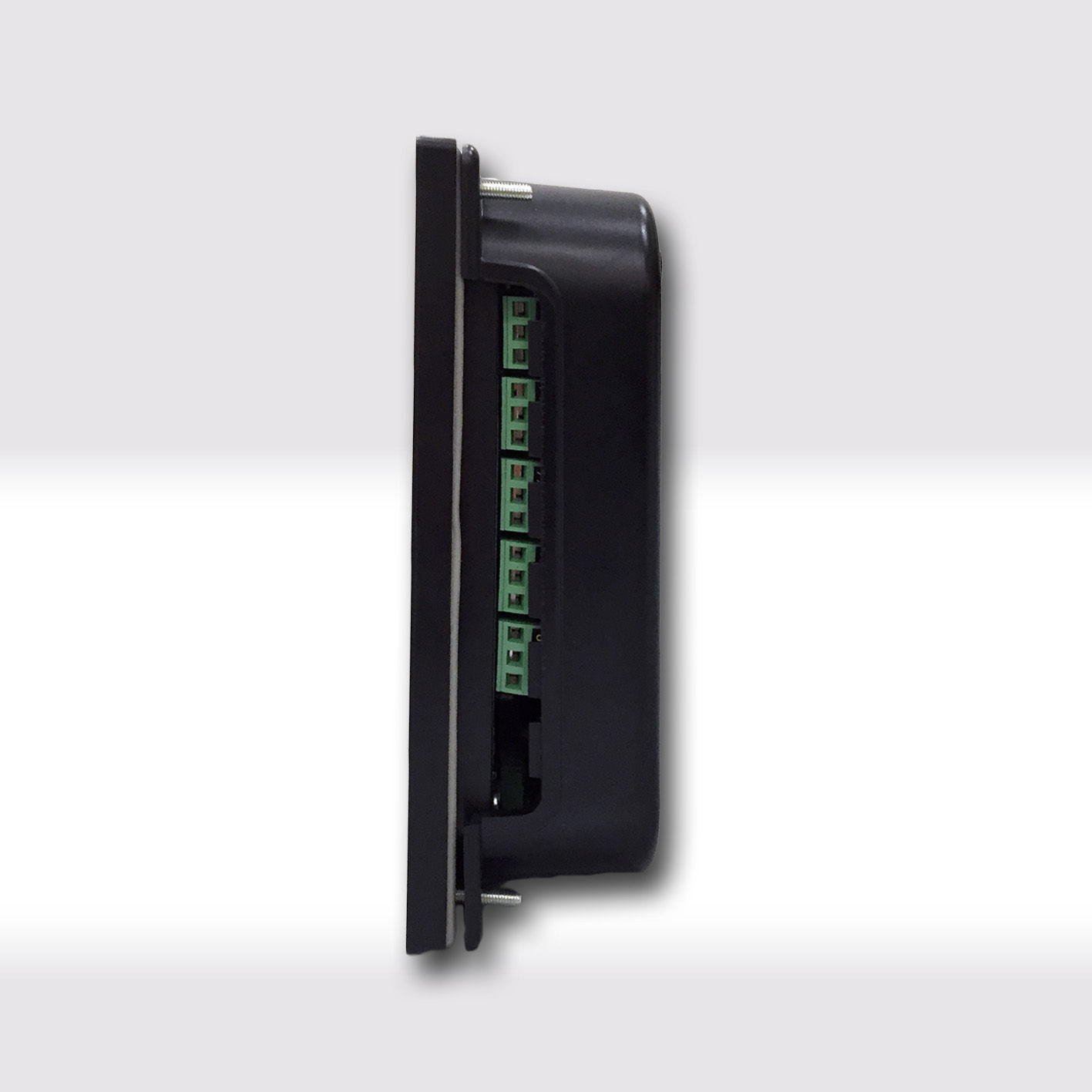

C-12845-485

FIRE-FIGHTING MOTOR PUMP CONTROL UNIT

Control unit for automatic motor pump control panel conforming to standard EN12845, with digital instruments, warnings and communications on LCD display in various languages, with RS-485 serial connection for remote warnings, which can be connected to 3A or 6A battery chargers.

KEY FEATURES

- Digital instruments (two battery ammeters, two battery voltmeters, total hour meter, partial hour meter, tachometer, water thermometer, oil thermometer, oil pressure gauge, fuel level indicator).
- Automatic start with 6 impulses alternated on the two batteries.
- Manual start-up buttons.
- Test button.
- Button for in-site test for machine putting into service.
- Manual stop with button.
- Check of efficiency of the batteries.
- Engine automatic faults surveillance.
- History events.

IDENTIFICATION DATA

Type Code
C-12845-485
00242291

DOWNLOAD

Documents
Instruction and user manual C-12845-485
Documents
Technical programming manual C-12845-485
Only authorized users
Technical programming manual C-12845-485 (2)
Only authorized users
