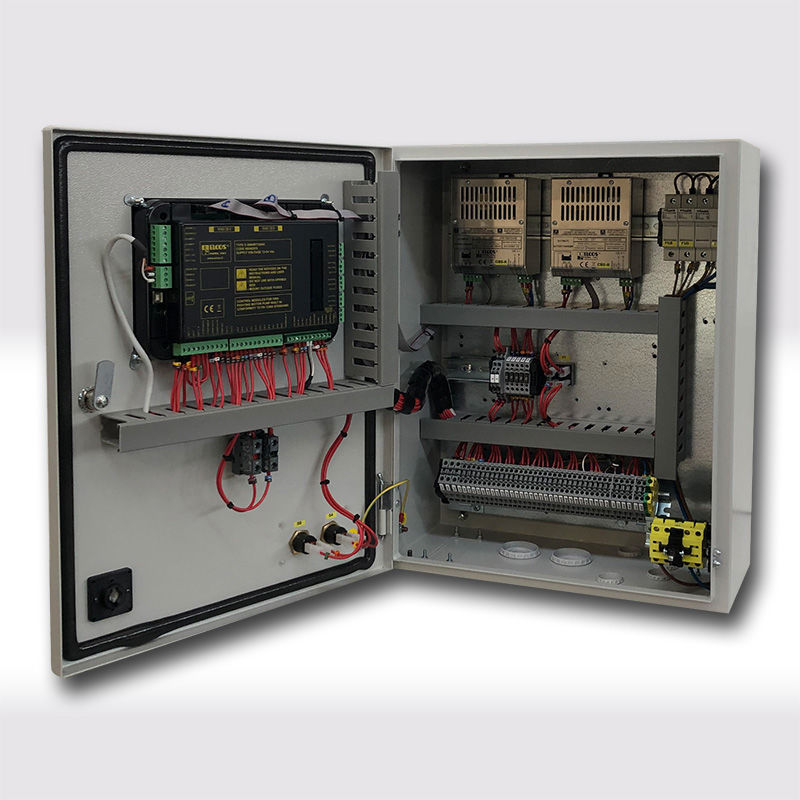

SNFE-1203 SNFE-1206
COMPLIANT TO EN12845 STANDARD
Automatic control panels for motor-pumps complying with standard EN12845, equipped with C-SMART12845 control unit with digital instruments, signalling and warnings on LCD graphic display and with RS-485 serial connection for remote signalling, internally equipped with 3.5A or 6A battery charger.KEY FEATURES
| - Digital instruments (two battery ammeters, two battery voltmeters, total hour meter, partial hour meter, tachometer, water thermometer, oil thermometer, oil pressure gauge, fuel level indicator). |
| - Automatic start with 6 impulses alternated on the two batteries. |
| - Manual start-up buttons. |
| - Test button. |
| - Button for in-site test for machine putting into service. |
| - Manual stop with button. |
| - Check of efficiency of the batteries. |
| - Engine automatic faults surveillance. |
| - History events. |
| - 2 internal automatic battery chargers. |
IDENTIFICATION DATA
| Type | Setup | Dimensions HxWxD (mm) | Code |
| SNFE‐1203 12V | battery charger 3,5 A | 500 x 400 x 200 | 00023010 |
| SNFE‐1206 12V | battery charger 6 A | 500 x 400 x 200 | 00023011 |
| SNFE‐1206 24V | battery charger 6 A | 500 x 400 x 200 | 00023012 |
