DIP-337

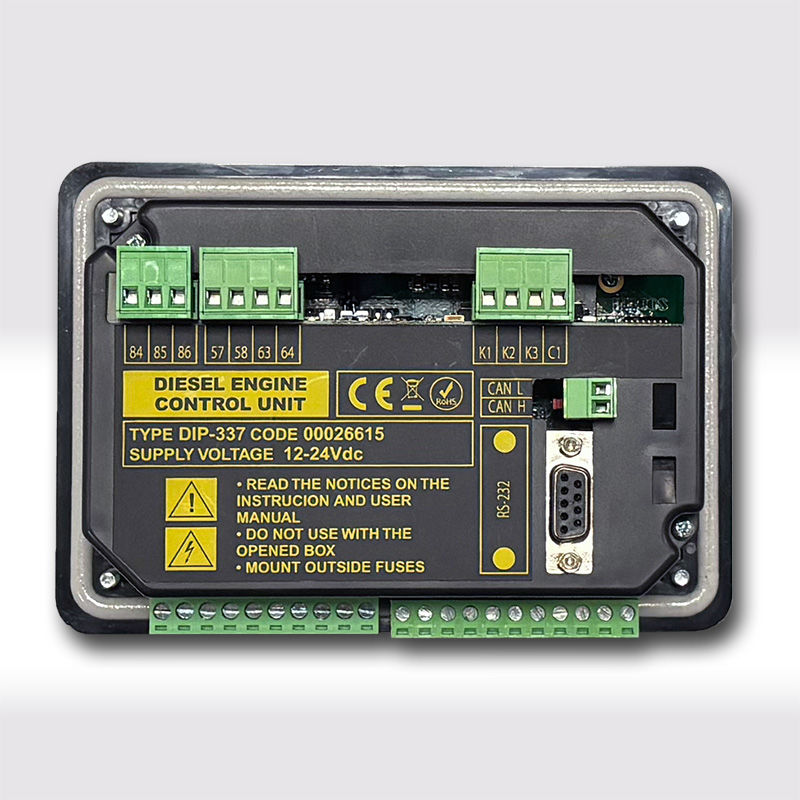

CONTROL UNITS FOR ENGINE CONTROL AND PROTECTION TYPE DIP-337

This control unit performs the function of controlling and protecting a diesel engine, and can be connected to an external starter key to manually start it. It can also control a linear actuator with which to vary the engine speed. It monitors the engine during its operation and stops it in the event of a fault.
It is also ready to be connected with engines equipped with an ECU engine control unit, via a CAN Bus serial line, with SAE J1939 protocol.
Its graphic display allows easy management of functions, shows pop-ups that clearly indicate the status of the diesel, and by displaying text and icons indicates faults, pre-alarms or other engine warnings.

KEY FEATURES

The control unit displays the following instruments:

  • Fuel level in the tank [%]..
  • Engine tachometer [RPM].
  • Motor temperature expressed in [°C] or in [°F].
  • Engine oil pressure expressed in [bar] or in [kPa] or in [psi].
  • Battery voltage [V].
  • Voltage of D+ (pre-excitation alternator) [V].
  • Total hour counter [hh: mm].
  • Partial hour counter [hh: mm].
  • Start-up counter [n].
  • Expiration of maintenance.
  • Calendar clock.
The alarms are always shown on the display, in addition the STOP ANOMALY LED lights up if the engine is stopped, while the SIGNAL ANOMALY LED lights up if the anomaly is just a pre-alarm.

IDENTIFICATION DATA

Type Code
DIP-337 00026615

DOWNLOAD

CAD
3D, .STEP format
Documents
Instruction and user manual DIP-337
Software
Firmware update software ZW-Upgrade
Programming software ZW-SMART rel. 1.2.9231.33133
