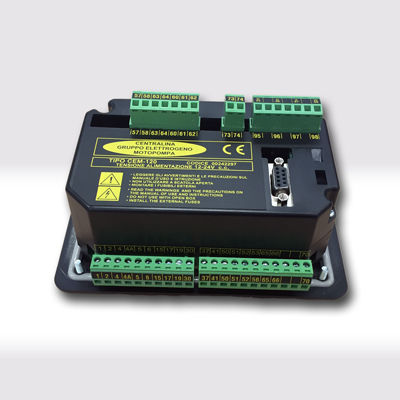

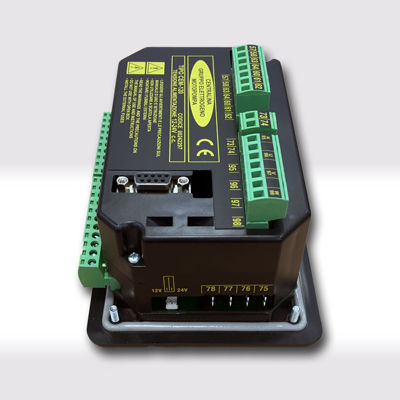

CEM-120/10

COMBINED CONTROL UNIT FOR CONTROLLING AN INDEPENDENT GENERATOR SET AND IRRIGATION MOTOR PUMP

Automatic and manual control unit for generator set together with an irrigation electric-pump, with all possible digital instruments and alarms on LCD display for the diesel engine, the generator and the irrigation pump, various serial connections.

KEY FEATURES

- Digital instruments (pump water pressure gauge, three ammeters, three voltmeters, frequency meter, wattmeter, varmeter, voltammeter, power factor meter, kilowatt-hour, fuel level indicator, battery voltmeter, water and oil thermometer, oil pressure gauge, total hour meter, partial hour meter, start-up counter, failure to start counter, tachometer).
- Pump water pressure control.
- Switching off of pump water protection device.
- Automatic monitoring of faults with messages on the display.
- Texts in 6 languages: Italian, English, French, German, Spanish and Portuguese.
- Remote control (start-up and stop).
- Management of glow plug preheating.
- Clock for programming the starting or stopping of the machine.
- Indication of preventive maintenance operations.
- Programmable weekly self-test.
- Inputs for fully programmable available fault.
- Possibility to start the generator set with battery with low charge.
- Three-phase voltmeter check: minimum, maximum voltage, asymmetry and incorrect phase sequence of the generator.
- Fault log (the data of the last 100 faults that occurred are collected).
- Serial port RS232 and GSM Modem (optional).

IDENTIFICATION DATA

Type Code

CEM-120

00242297

DOWNLOAD

Documents
Instruction and user manual CEM-120
Technical programming manual Modem Moxa On Cell G2110
Technical programming manual Modem AMD-RB900/PRO
Documents
Technical programming manual CEM-120
Only authorized users
Software
Firmware update software ZW-Upgrade
Only authorized users
Programming software ZW-SMART rel. 1.2.9061.26409
