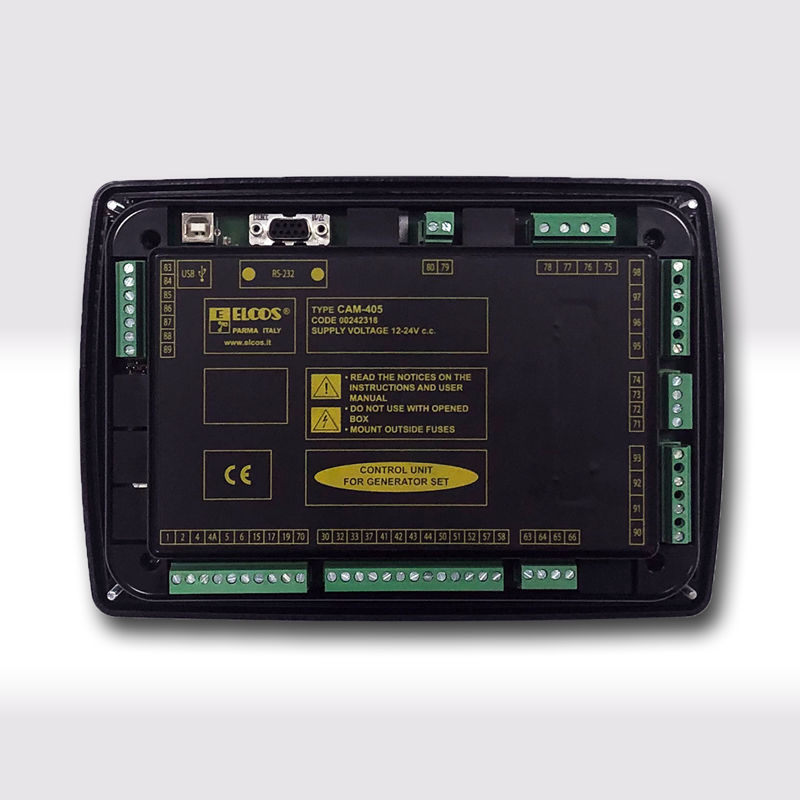

CAM-405

CONTROL UNIT FOR GENERATING SET

Auto Mains Failure control unit for panel of a emergency gen-set, with digital instruments, monitoring and alarms on the graphic LCD display in different languages, equipped with CAN BUS (SAE J1939) and with several serial connections and remote control.

KEY FEATURES

- Digital instruments (three mains voltmeters, three genset voltmeters, three mains/genset ammeters, a mains/genset frequency meter, a genset tachometer, the mains/genset kW, kVAR and kVA powers, the battery voltmeter, the fuel level gauge, the engine temperature, the oil pressure, the total hour meter, the partial hour meter, the start-up counter).
- Automatic monitoring of faults with messages on the display.
- Total three-phase voltmeter control of mains and generator set (undervoltage, overvoltage, phase asymmetry, incorrect phase sequence, underfrequency and overfrequency).
- Texts in 7 languages: Italian, English, French, German, Spanish, Portuguese plus a programmable language.
- Connection to CAN Bus SAEJ1939.
- Serial ports RS232, RS485 and USB.
- MOD Bus RTU protocol.
- Management of 4 maintenance operations.
- Management of rental hours.
- Remote controls (start-up, stop, EJP).
- Genset start-up and stop upon power request.
- Possibility to start up genset when the battery is in low charge.
- Possibility to match inputs and outputs to different functions.
- Management of glow plug preheating.
- Management of fuel refill from storage tank to the tank in use.
- Clock-programmed start-up and stop of generator set.
- Programmable weekly self-test.
- Fault history.
- Possibility to program password-protected functions.
- Dimensions (LxHxD) 252x175x60mm.

IDENTIFICATION DATA

Type Code
CAM-405 00242318

DOWNLOAD

Documents
Instruction and user manual CAM-405
Technical programming manual Modem Moxa On Cell G2110
Technical programming manual Modem AMD-RB900/PRO
Software
Firmware update software ZW-Upgrade
Only authorized users
Programming software ZW-SMART rel. 1.2.9010.27694
