Products
GEP-120

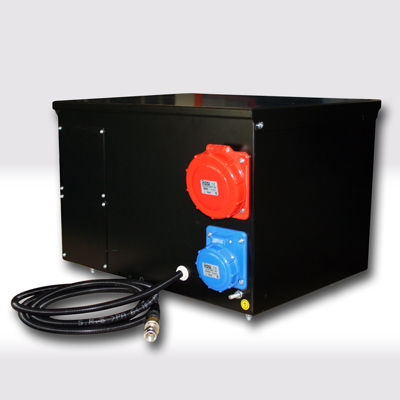

COMBINED CONTROL PANEL FOR CONTROL OF INDEPENDENT GENERATOR SET AND IRRIGATION PUMP

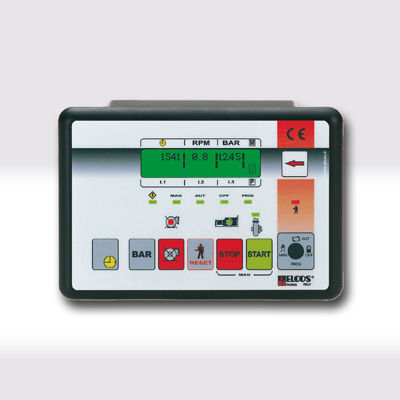

Complete automatic switch-board for generator set together with an irrigation electric-pump, with the control unit CEM-120, that has all possible digital instruments and alarms on LCD display for the diesel engine, for the generator and for the irrigation pump.KEY FEATURES
| - Digital instruments (pump water pressure gauge, three ammeters, three voltmeters, frequency meter, wattmeter, varmeter, voltammeter, power factor meter, kilowatt-hour, fuel level indicator, battery voltmeter, water and oil thermometer, oil pressure gauge, total hour meter, partial hour meter, start-up counter, failure to start counter, tachometer). |
| - Pump water pressure control. |
| - Switching off of pump water protection device. |
| - Automatic monitoring of faults with messages on the display. |
| - Texts in 6 languages: Italian, English, French, German, Spanish and Portuguese. |
| - Remote control (start-up and stop). |
| - Management of glow plug preheating. |
| - Clock for programming the starting or stopping of the machine. |
| - Indication of preventive maintenance operations. |
| - Programmable weekly self-test. |
| - Inputs for fully programmable available fault. |
| - Possibility to start the generator set with battery with low charge. |
| - Three-phase voltmeter check: minimum, maximum voltage, asymmetry and incorrect phase sequence of the generator. |
| - Fault log (the data of the last 100 faults that occurred are collected). |
| - Serial port RS232 and GSM Modem (optional). |
IDENTIFICATION DATA
| Type | Code | |
| GEP-120/17 | TPA-200 - 17 KVA | 00021321 |
| GEP-120/22 | TPA-200 - 22 KVA | 00021322 |
| GEP-120/28 | TPA-200 - 28 KVA | 00021323 |
| GEP-120/40 | TPA-200 - 40 KVA | 00021324 |
