NF-1200
AUTOMATIC CONTROL SWITCH-BOARD FOR DIESEL ENGINE

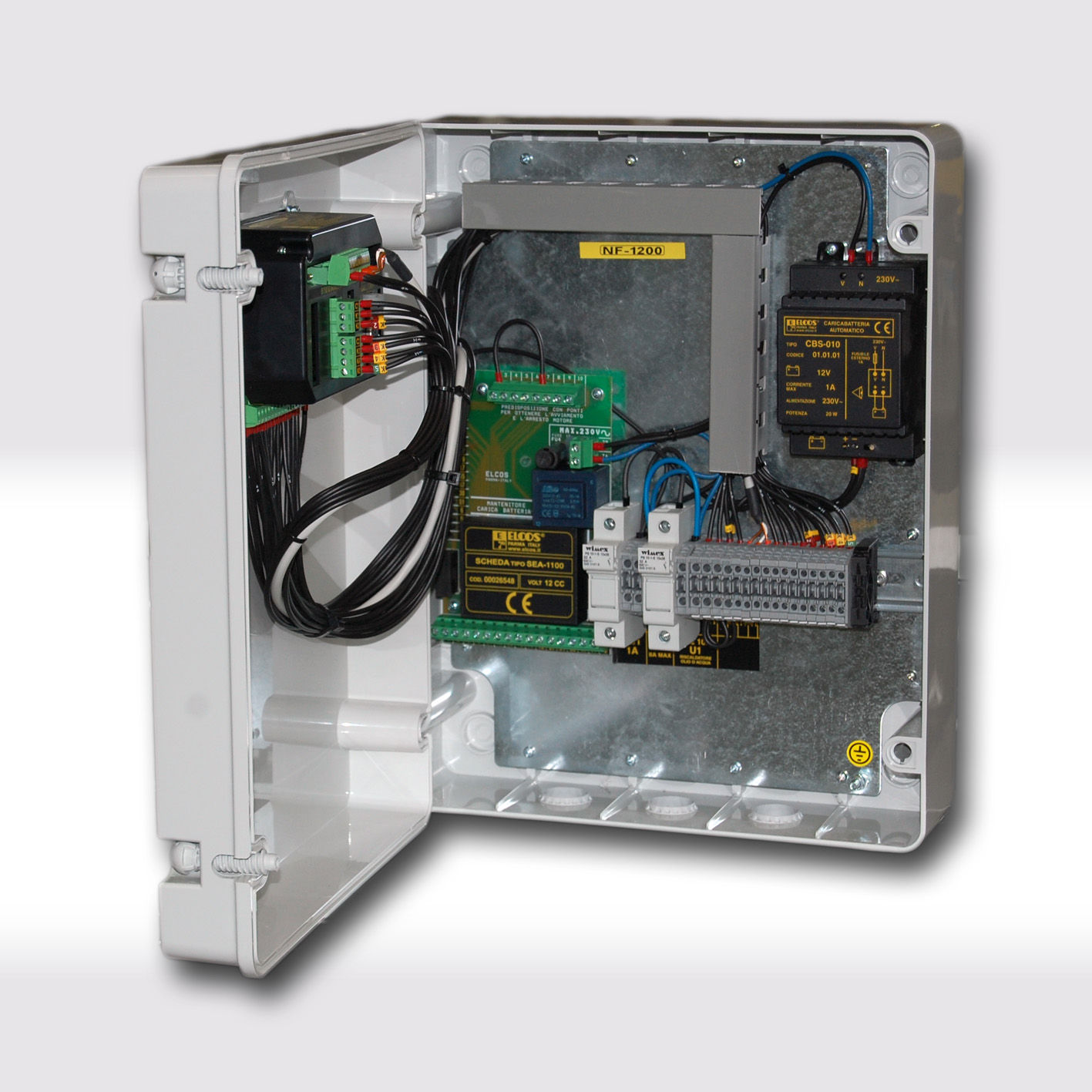

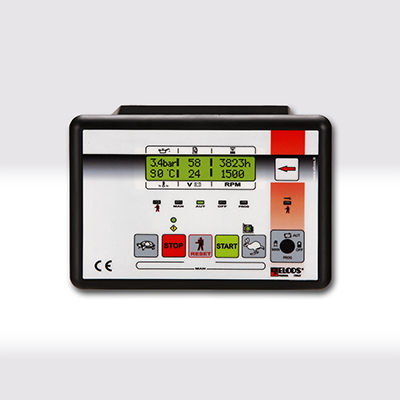

Automatic control panel for generic motor pump, equipped with control unit DCA-120/10 with all possible digital instruments and alarms, on LCD display, various serial connections, CAN Bus SAE J1939, fitted internally with 1A battery charger.KEY FEATURES
| - Digital instruments (fuel level indicator, water oil thermometer, oil pressure gauge, battery voltmeter, total hour meter, partial hour meter, tachometer, starting counter, starting failures counter) |
| - Automatic faults surveillance with messages on the display. |
| - Texts in 6 languages: Italian, English, French, German, Spanish and Portuguese. |
| - Preventive maintenance warning. |
| - Possibility of associating 2 relays with various functions. |
| - Remote control (start and stop). |
| - Preheating glow plugs management. |
| - Engine heating and cooling. |
| - Clock for programming the starting or the stopping of the engine. |
| - Programmable weekly selftest. |
| - Available fully programmable input for anomaly. |
| - CAN Bus SAE J1939. |
| - Possibility of starting the engine when the charge of the battery is low. |
| - Anomaly historical record (Including data from the last 100 occurred anomalies). |
| - Serial ports RS232 and RS485 for GSM Modem or for MOD Bus protocol. |
| - Internal automatic battery charger. |
IDENTIFICATION DATA
| Type | Code |
| NF-1200 12V | 00022143 |
| NF-1200 24V | 00022144 |
